Hardware Integration
Interface Options
The AREA65 module supports four communication interfaces that can operate simultaneously.
Connector Pinout

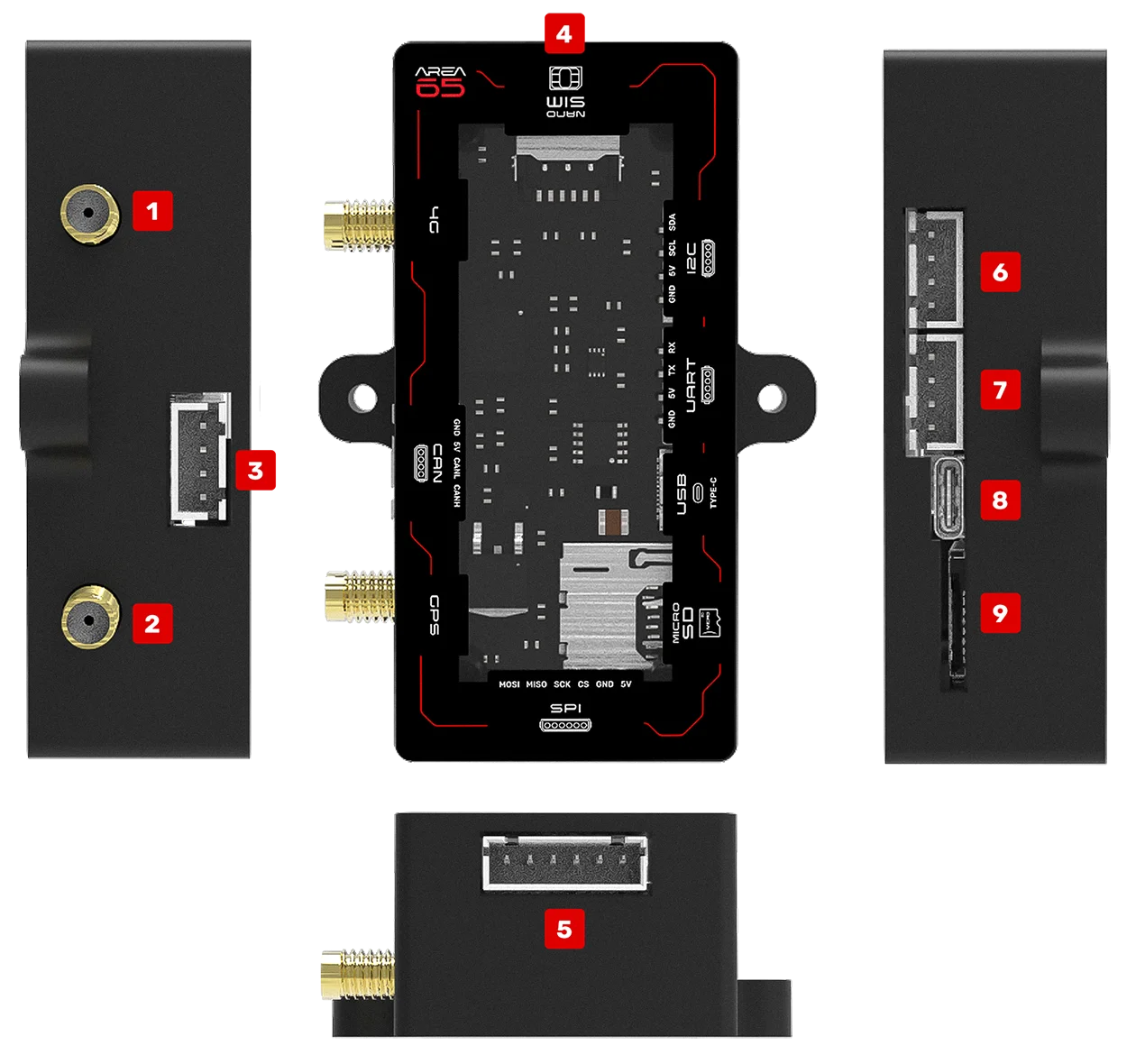

The AREA65 module features the following hardware interfaces:
# |
Interface |
Description |
|---|---|---|
1 |
4G SMA |
4G cellular antenna connector |
2 |
GPS SMA |
GPS antenna connector |
3 |
CAN |
CAN 2.0 bus interface |
4 |
Nano SIM |
Nano SIM card slot for cellular connectivity |
5 |
SPI |
SPI interface (3.3V TTL) |
6 |
I2C |
I2C interface (3.3V TTL) |
7 |
UART |
UART interface (TTL, 5V) |
8 |
USB-C |
USB-C connector for power and data |
9 |
MicroSD |
MicroSD card slot for data logging |
UART
Pin |
Function |
|---|---|
GND |
Ground |
5V |
5V Power |
TX |
Transmit |
RX |
Receive |
Baud Rate: 57600 (fixed) Voltage: 5.0V TTL
CAN 2.0
Pin |
Function |
|---|---|
GND |
Ground |
5V |
5V Power |
CANL |
CAN Low |
CANH |
CAN High |
Protocol: CAN 2.0A/B Speed: Configurable
SPI
Pin |
Function |
|---|---|
MOSI |
Master Out Slave In |
MISO |
Master In Slave Out |
SCK |
Serial Clock |
CS |
Chip Select |
GND |
Ground |
5V | 5V Power |
|
Voltage: 3.3V TTL
I2C
Pin |
Function |
|---|---|
GND |
Ground |
5V |
5V Power |
SCL |
Serial Clock |
SDA |
Serial Data |
Voltage: 3.3V TTL Address: Configurable
Power Requirements
Parameter |
Value |
|---|---|
Voltage |
5V DC |
Current |
1A minimum |
Connector |
USB-C or interface pins |
Mechanical Dimensions
Dimension |
Value (mm) |
|---|---|
Length |
78 |
Width |
57 |
Height |
24 |
Weight |
45g |
Mounting Holes |
2x Ø3.3mm through holes |
